네트워크 스터디 8주차 - 1

Django가 고장날때까지 2024. 10. 20. 20:55
반응형







<목차>

- BPF vs eBPF 소개

- cilium 개념 설명

- 실습 환경 구성

- 실습





========================================================================================



BPF (Berkeley Packet Filter)

  • 초기 목적: BPF는 원래 네트워크 패킷을 필터링하기 위해 개발된 기술임. 커널 수준에서 패킷을 효율적으로 필터링해 필요한 패킷만 사용자 공간에 전달할 수 있도록 설계되었음.
  • 사용 방식: 전통적인 BPF는 네트워크 트래픽을 필터링하고 분석하기 위해 사용되며, 주로 네트워크 모니터링 도구와 스니퍼에서 쓰임. 예를 들어, tcpdump와 같은 네트워크 모니터링 툴이 BPF를 사용해 필요한 트래픽만 수집함.

eBPF (extended BPF)

  • 확장 기능: eBPF는 기존 BPF의 기능을 대폭 확장하여 다양한 커널 수준의 작업을 수행할 수 있도록 설계되었음. 패킷 필터링을 넘어 시스템 전체의 성능 모니터링, 보안, 네트워크 정책 관리 등 다양한 영역에서 활용됨.
  • 안전성: eBPF는 커널 내에서 코드를 실행하기 때문에 매우 신중하게 설계되었음. eBPF 프로그램은 커널에 로드될 때 검증기를 통해 안전성을 검사받으며, 이 덕분에 시스템의 안정성을 보장하면서도 유연하게 동작할 수 있음.
  • 성능 최적화: eBPF 프로그램은 커널 내부에서 직접 실행되므로, 사용자 공간과 커널 공간 간의 전환이 줄어들어 성능 면에서도 이점이 큼. 특히 네트워크 트래픽 처리와 시스템 모니터링에서 효율적인 성능을 제공함.
  • 다양한 응용 사례:
    • 성능 모니터링: bcc, bpftrace 같은 도구를 통해 시스템 콜, 메모리 사용량, CPU 사용량 등을 모니터링하는 데 사용됨.
    • 네트워크 관리: Cilium과 같은 도구에서 eBPF를 활용하여 네트워크 보안 및 정책을 설정함.
    • 보안 강화: 보안적으로 의심스러운 동작을 탐지하고 차단하는 기능을 제공함.

BPF와 eBPF의 차이점 요약

  • 기능: BPF는 주로 패킷 필터링에 사용되지만, eBPF는 네트워크 외의 다양한 커널 수준 작업에 사용할 수 있음.
  • 안전성: eBPF는 커널 내에서 직접 실행되어 안전성 검사를 통과한 코드만 실행되며, 사용자 공간 전환이 적어 성능 이점이 있음.
  • 응용 범위: eBPF는 성능 모니터링, 보안, 네트워크 관리 등 여러 영역에서 활용됨.



커널해킹



- 샌드박스(커널해킹이 가능했던 이유)









XDP는 eXpress Data Path의 약자로, eBPF(eXtended Berkeley Packet Filter) 기반의 고속 데이터 경로 기술입니다. 쉽게 말해, 네트워크 패킷을 매우 빠르게 처리하기 위한 방법



TC(Traffic Control)에 대한 설명

리눅스 커널에서 네트워크 트래픽을 제어하고 관리하기 위한 강력한 도구입니다. 쉽게 말해, 네트워크에서 흐르는 데이터의 흐름을 조절하고, 특정 트래픽을 우선순위를 부여하거나 제한하는 등 다양한 작업을 수행할 수 있는 기능



TC와 XDP의 차이점

  • 작동 위치: TC는 커널 네트워크 스택 내에서 작동하며, XDP는 네트워크 드라이버 위에서 작동합니다.
  • 성능: XDP는 커널 바이패스를 통해 더 높은 성능을 제공하며, TC는 커널 스택을 거치기 때문에 상대적으로 성능이 낮습니다.
  • 복잡도: XDP는 eBPF를 사용하여 프로그래밍하기 때문에 TC보다 더 복잡합니다.



1강





Cilicum cni 설치하고 캡쳐해서 Not Ready가 아님



이 옵션을 줬기 때문에 kube-proxy 없음



커널 버전이 중요하고, 6.8 (최신임 24년 10월 기준)
iptables의 규칙에 일치할때 까지 모든 규칙을 평가함







========================================================================================













Direct Routing 선호





구성요소





BPF 맵은 Cilium과 같은 네트워킹 시스템에서 매우 중요한 역할을 합니다. 네트워크 정책, 서비스 정보, 상태 정보 등을 효율적으로 저장하고 관리하여 유연하고 고성능의 네트워킹 기능을 구현할 수 있도록 지원합니다.

핵심 기능:

  • 데이터 저장: 네트워크 관련 다양한 데이터를 저장
  • 정책 결정: 저장된 데이터를 기반으로 패킷 처리 결정
  • 데이터 공유: 여러 BPF 프로그램 간의 데이터 공유

Cilium에서의 활용:

  • 정책 기반 네트워킹: 컨테이너 간 통신 제어
  • 서비스 메시: 서비스 디스커버리 및 로드밸런싱
  • eBPF 관찰성: 네트워크 트래픽 모니터링

기본적으로 이 값을 넘어갈순 없음 - 넘어갈 경우 따로 설정 필요







The Linux kernel supports a set of BPF hooks in the networking stack that can be used to run BPF programs. The Cilium datapath uses these hooks to load BPF programs that when used together create higher level networking constructs.

https://docs.cilium.io/en/v1.10/concepts/ebpf/intro/#introduction









envoy에서 처리하는 순간 user space 임



L7 Egress policy -  점선으로 된 영역으로 경로가 추가됨

L7 Egress policy가 없으면



외부의 엔드포인트가 있는 경우



Ingress to Endpoint



cilium은 기본적으로 iptable을 사용하지 않지만, 올바르게 동작하지 않을 경우를 대비해서 일부의 iptable을 남겨놓음

하이브리드 해서 사용할수도 잇음(iptable과 ebpf를)







=======================================================





#
helm install cilium cilium/cilium --version 1.16.3 --namespace kube-system \
--set k8sServiceHost=192.168.10.10 --set k8sServicePort=6443 --set debug.enabled=true \
--set rollOutCiliumPods=true --set routingMode=native --set autoDirectNodeRoutes=true \
--set bpf.masquerade=true --set bpf.hostRouting=true --set endpointRoutes.enabled=true \
--set ipam.mode=kubernetes --set k8s.requireIPv4PodCIDR=true --set kubeProxyReplacement=true \
--set ipv4NativeRoutingCIDR=192.168.0.0/16 --set installNoConntrackIptablesRules=true \
--set hubble.ui.enabled=true --set hubble.relay.enabled=true --set prometheus.enabled=true --set operator.prometheus.enabled=true --set hubble.metrics.enableOpenMetrics=true \
--set hubble.metrics.enabled="{dns:query;ignoreAAAA,drop,tcp,flow,port-distribution,icmp,httpV2:exemplars=true;labelsContext=source_ip\,source_namespace\,source_workload\,destination_ip\,destination_namespace\,destination_workload\,traffic_direction}" \
--set operator.replicas=1

## 주요 파라미터 설명
--set debug.enabled=true # cilium 파드에 로그 레벨을 debug 설정
--set autoDirectNodeRoutes=true # 동일 대역 내의 노드들 끼리는 상대 노드의 podCIDR 대역의 라우팅이 자동으로 설정
--set endpointRoutes.enabled=true # 호스트에 endpoint(파드)별 개별 라우팅 설정
--set hubble.relay.enabled=true --set hubble.ui.enabled=true # hubble 활성화
--set ipam.mode=kubernetes --set k8s.requireIPv4PodCIDR=true # k8s IPAM 활용
--set kubeProxyReplacement=true # kube-proxy 없이 (최대한) 대처할수 있수 있게
--set ipv4NativeRoutingCIDR=192.168.0.0/16 # 해당 대역과 통신 시 IP Masq 하지 않음, 보통 사내망 대역을 지정
--set operator.replicas=1 # cilium-operator 파드 기본 1개
--set enableIPv4Masquerade=true --set bpf.masquerade=true # 파드를 위한 Masquerade , 추가로 Masquerade 을 BPF 로 처리 >> enableIPv4Masquerade=true 인 상태에서 추가로 bpf.masquerade=true 적용이 가능



autoDirectNodeRoutes=true 옵션을 사용했기 때문에 동일 대역 내의 노드들 끼리는 상대 노드의 podCIDR 대역의 라우팅이 자동으로 설정





cf) 주요 파라미터 설정하는 것이 어렵다.

https://docs.cilium.io/en/stable/helm-reference/





iptable 의 nat table 갯수가 이렇게 적다.!!!!!!!1















cilium_host -> 172.16.0.219를 가리킴

# cilium_host 인터페이스의 IP 확인 : CILIUMINTERNALIP



















네트워크 장비 스펙 활용해서 native xdp 쓰면 끝장나게 빠를수 있다고 햇는뎅 음 구글에서 찾아보니 aws는 아직 이슈가 있는 것을 보임... 더 느리다고 하는뎅.



https://github.com/amzn/amzn-drivers/issues/264



ena xdp native mode much slower than xdp skb/generic for XDP_TX · Issue #264 · amzn/amzn-drivers

Hi, dear ena developers We've been fighting with an ena driver performance issue with the XDP_TX operations on EC2 instances. And hopefully you can help us out. We've noticed that using the xdp nat...

github.com

최신 업데이트 근황

https://github.com/amzn/amzn-drivers/commit/a6ee03f2a3bd5dc0e1dd3f8e09623922a122cda2#diff-d9eb99f5b7fb107c8833511246eabc99c68269e01ba3f67b7ae9348342589250R51



linux/ena: Update driver version to 2.13.0 · amzn/amzn-drivers@a6ee03f

Also updated release notes and RPM files. Signed-off-by: Shay Agroskin <shayagr@amazon.com>

github.com





추척을 안한다.(--notrack)



cilium cli 설치





# cilium 데몬셋 파드 내에서 cilium 명령어로 상태 확인
export CILIUMPOD0=$(kubectl get -l k8s-app=cilium pods -n kube-system --field-selector spec.nodeName=k8s-s  -o jsonpath='{.items[0].metadata.name}')
alias c0="kubectl exec -it $CILIUMPOD0 -n kube-system -c cilium-agent -- cilium"



c0 status --verbose
KVStore:                Ok   Disabled
Kubernetes:             Ok   1.30 (v1.30.6) [linux/amd64]
Kubernetes APIs:        ["EndpointSliceOrEndpoint", "cilium/v2::CiliumClusterwideNetworkPolicy", "cilium/v2::CiliumEndpoint", "cilium/v2::CiliumNetworkPolicy", "cilium/v2::CiliumNode", "cilium/v2alpha1::CiliumCIDRGroup", "core/v1::Namespace", "core/v1::Pods", "core/v1::Service", "networking.k8s.io/v1::NetworkPolicy"]
KubeProxyReplacement:   True   [ens5   192.168.10.10 fe80::62:b1ff:fedc:b909 (Direct Routing)]
Host firewall:          Disabled
SRv6:                   Disabled
CNI Chaining:           none
CNI Config file:        successfully wrote CNI configuration file to /host/etc/cni/net.d/05-cilium.conflist
Cilium:                 Ok   1.16.3 (v1.16.3-f2217191)
NodeMonitor:            Listening for events on 4 CPUs with 64x4096 of shared memory
Cilium health daemon:   Ok
IPAM:                   IPv4: 2/254 allocated from 172.16.0.0/24,
Allocated addresses:
  172.16.0.174 (health)
  172.16.0.219 (router)
IPv4 BIG TCP:           Disabled
IPv6 BIG TCP:           Disabled
BandwidthManager:       Disabled
Routing:                Network: Native   Host: BPF
Attach Mode:            TCX
Device Mode:            veth
Masquerading:           BPF (ip-masq-agent)   [ens5]   192.168.0.0/16 [IPv4: Enabled, IPv6: Disabled]
Clock Source for BPF:   ktime
Controller Status:      21/21 healthy
  Name                                  Last success   Last error   Count   Message
  bpf-map-sync-cilium_lxc               4s ago         never        0       no error
  cilium-health-ep                      53s ago        never        0       no error
  ct-map-pressure                       20s ago        never        0       no error
  daemon-validate-config                49s ago        never        0       no error
  dns-garbage-collector-job             4s ago         never        0       no error
  endpoint-1303-regeneration-recovery   never          never        0       no error
  endpoint-2847-regeneration-recovery   never          never        0       no error
  endpoint-gc                           2m5s ago       never        0       no error
  ep-bpf-prog-watchdog                  29s ago        never        0       no error
  ipcache-inject-labels                 3s ago         never        0       no error
  k8s-heartbeat                         1s ago         never        0       no error
  link-cache                            12s ago        never        0       no error
  node-neighbor-link-updater            5s ago         never        0       no error
  resolve-identity-2847                 2m2s ago       never        0       no error
  resolve-labels-/                      28h42m3s ago   never        0       no error
  restoring-ep-identity (1303)          28h42m3s ago   never        0       no error
  sync-lb-maps-with-k8s-services        28h42m3s ago   never        0       no error
  sync-policymap-1303                   12m0s ago      never        0       no error
  sync-policymap-2847                   11m55s ago     never        0       no error
  sync-utime                            2s ago         never        0       no error
  write-cni-file                        28h42m5s ago   never        0       no error
Proxy Status:            OK, ip 172.16.0.219, 0 redirects active on ports 10000-20000, Envoy: external
Global Identity Range:   min 256, max 65535
Hubble:                  Ok   Current/Max Flows: 4095/4095 (100.00%), Flows/s: 1.01   Metrics: Ok
KubeProxyReplacement Details:
  Status:                 True
  Socket LB:              Enabled
  Socket LB Tracing:      Enabled
  Socket LB Coverage:     Full
  Devices:                ens5   192.168.10.10 fe80::62:b1ff:fedc:b909 (Direct Routing)
  Mode:                   SNAT
  Backend Selection:      Random
  Session Affinity:       Enabled
  Graceful Termination:   Enabled
  NAT46/64 Support:       Disabled
  XDP Acceleration:       Disabled
  Services:
  - ClusterIP:      Enabled
  - NodePort:       Enabled (Range: 30000-32767)
  - LoadBalancer:   Enabled
  - externalIPs:    Enabled
  - HostPort:       Enabled
BPF Maps:   dynamic sizing: on (ratio: 0.002500)
  Name                          Size
  Auth                          524288
  Non-TCP connection tracking   72610
  TCP connection tracking       145220
  Endpoint policy               65535
  IP cache                      512000
  IPv4 masquerading agent       16384
  IPv6 masquerading agent       16384
  IPv4 fragmentation            8192
  IPv4 service                  65536
  IPv6 service                  65536
  IPv4 service backend          65536
  IPv6 service backend          65536
  IPv4 service reverse NAT      65536
  IPv6 service reverse NAT      65536
  Metrics                       1024
  NAT                           145220
  Neighbor table                145220
  Global policy                 16384
  Session affinity              65536
  Sock reverse NAT              72610
  Tunnel                        65536
Encryption:           Disabled
Cluster health:       3/3 reachable    (2024-10-26T14:25:11Z)
  Name                IP               Node        Endpoints
  k8s-s (localhost)   192.168.10.10    reachable   reachable
  k8s-w1              192.168.10.101   reachable   reachable
  k8s-w2              192.168.10.102   reachable   reachable
Modules Health:
      agent
      ├── controlplane
      │   ├── auth
      │   │   ├── observer-job-auth gc-identity-events            [OK] Primed (28h, x1)
      │   │   ├── observer-job-auth request-authentication        [OK] Primed (28h, x1)
      │   │   └── timer-job-auth gc-cleanup                       [OK] OK (72.053µs) (2m5s, x1)
      │   ├── bgp-control-plane
      │   │   ├── job-bgp-crd-status-initialize                   [OK] Running (28h, x1)
      │   │   ├── job-bgp-crd-status-update-job                   [OK] Running (28h, x1)
      │   │   ├── job-bgp-state-observer                          [OK] Running (28h, x1)
      │   │   └── job-diffstore-events                            [OK] Running (28h, x2)
      │   ├── daemon
      │   │   ├──                                                 [OK] daemon-validate-config (49s, x1694)
      │   │   ├── ep-bpf-prog-watchdog
      │   │   │   └── ep-bpf-prog-watchdog                        [OK] ep-bpf-prog-watchdog (29s, x3444)
      │   │   └── job-sync-hostips                                [OK] Synchronized (3s, x1723)
      │   ├── endpoint-manager
      │   │   ├── cilium-endpoint-1303 (/)
      │   │   │   ├── datapath-regenerate                         [OK] Endpoint regeneration successful (28h, x2)
      │   │   │   └── policymap-sync                              [OK] sync-policymap-1303 (12m, x115)
      │   │   ├── cilium-endpoint-2847 (/)
      │   │   │   ├── datapath-regenerate                         [OK] Endpoint regeneration successful (28h, x2)
      │   │   │   └── policymap-sync                              [OK] sync-policymap-2847 (11m, x115)
      │   │   └── endpoint-gc                                     [OK] endpoint-gc (2m5s, x345)
      │   ├── envoy-proxy
      │   │   └── timer-job-version-check                         [OK] OK (2.606406ms) (2m3s, x1)
      │   ├── l2-announcer
      │   │   └── job-l2-announcer lease-gc                       [OK] Running (28h, x1)
      │   ├── nat-stats
      │   │   └── timer-job-nat-stats                             [OK] OK (1.627982ms) (3s, x1)
      │   ├── node-manager
      │   │   ├── background-sync                                 [OK] Node validation successful (41s, x1242)
      │   │   ├── neighbor-link-updater
      │   │   │   ├── k8s-w1                                      [OK] Node neighbor link update successful (35s, x1243)
      │   │   │   └── k8s-w2                                      [OK] Node neighbor link update successful (5s, x1243)
      │   │   ├── node-checkpoint-writer                          [OK] node checkpoint written (28h, x3)
      │   │   ├── nodes-add                                       [OK] Node adds successful (28h, x3)
      │   │   └── nodes-delete                                    [OK] Node deletions successful (28h, x1)
      │   ├── service-manager
      │   │   └── job-ServiceReconciler                           [OK] 1 NodePort frontend addresses (28h, x1)
      │   ├── service-resolver
      │   │   └── job-service-reloader-initializer                [OK] Running (28h, x1)
      │   ├── stale-endpoint-cleanup
      │   │   └── job-endpoint-cleanup                            [OK] Running (28h, x1)
      │   └── timer-job-device-reloader                           [OK] OK (30m0.29988216s) (5m23s, x1)
      ├── datapath
      │   ├── agent-liveness-updater
      │   │   └── timer-job-agent-liveness-updater                [OK] OK (34.087µs) (0s, x1)
      │   ├── iptables
      │   │   ├── ipset
      │   │   │   ├── job-ipset-init-finalizer                    [OK] Running (28h, x1)
      │   │   │   ├── job-reconcile                               [OK] OK, 0 object(s) (42m, x29)
      │   │   │   └── job-refresh                                 [OK] Next refresh in 30m0s (12m, x58)
      │   │   └── job-iptables-reconciliation-loop                [OK] iptables rules full reconciliation completed (28h, x1)
      │   ├── l2-responder
      │   │   └── job-l2-responder-reconciler                     [OK] Running (28h, x1)
      │   ├── maps
      │   │   └── bwmap
      │   │       └── timer-job-pressure-metric-throttle          [OK] OK (1.692µs) (3s, x1)
      │   ├── node-address
      │   │   └── job-node-address-update                         [OK] Running (28h, x1)
      │   └── sysctl
      │       ├── job-reconcile                                   [OK] OK, 16 object(s) (2m, x3204)
      │       └── job-refresh                                     [OK] Next refresh in 9m54.550426051s (2m, x1)
      └── infra
          └── k8s-synced-crdsync
              └── job-sync-crds                                   [OK] Running (28h, x1)

(⎈|CiliumLab:N/A) root@k8s-s:~#













# cilium 파드 이름
export CILIUMPOD0=$(kubectl get -l k8s-app=cilium pods -n kube-system --field-selector spec.nodeName=k8s-s  -o jsonpath='{.items[0].metadata.name}')
export CILIUMPOD1=$(kubectl get -l k8s-app=cilium pods -n kube-system --field-selector spec.nodeName=k8s-w1 -o jsonpath='{.items[0].metadata.name}')
export CILIUMPOD2=$(kubectl get -l k8s-app=cilium pods -n kube-system --field-selector spec.nodeName=k8s-w2 -o jsonpath='{.items[0].metadata.name}')

# 단축키(alias) 지정
alias c0="kubectl exec -it $CILIUMPOD0 -n kube-system -c cilium-agent -- cilium"
alias c1="kubectl exec -it $CILIUMPOD1 -n kube-system -c cilium-agent -- cilium"
alias c2="kubectl exec -it $CILIUMPOD2 -n kube-system -c cilium-agent -- cilium"

alias c0bpf="kubectl exec -it $CILIUMPOD0 -n kube-system -c cilium-agent -- bpftool"
alias c1bpf="kubectl exec -it $CILIUMPOD1 -n kube-system -c cilium-agent -- bpftool"
alias c2bpf="kubectl exec -it $CILIUMPOD2 -n kube-system -c cilium-agent -- bpftool"









k8s-s에 배포된 cilium daemonset pod 내에서 enpolint list 명령어를 친거임

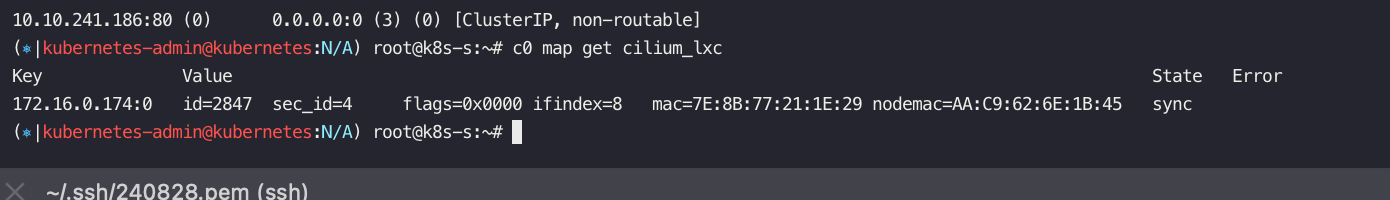

Cilium을 LXC(Linux Containers) 환경에 적용한 특별한 구성입니다. LXC 컨테이너 내에서 Cilium의 고급 네트워킹 및 보안 기능을 활용할 수 있도록 설계















coredns로 부하분산



(⎈|CiliumLab:N/A) root@k8s-s:~# c0 bpf nat list
UDP IN 169.254.169.123:123 -> 192.168.10.10:58648 XLATE_DST 192.168.10.10:58648 Created=1322sec ago NeedsCT=1
TCP IN 193.163.125.96:50779 -> 192.168.10.10:55555 XLATE_DST 192.168.10.10:55555 Created=458sec ago NeedsCT=1
TCP IN 172.16.1.89:8081 -> 192.168.10.10:56575 XLATE_DST 222.97.129.41:56575 Created=592sec ago NeedsCT=0
UDP OUT 192.168.10.10:41146 -> 185.125.190.58:123 XLATE_SRC 192.168.10.10:41146 Created=1422sec ago NeedsCT=1
UDP OUT 192.168.10.10:60215 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:60215 Created=1014sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:56814 XLATE_DST 192.168.10.10:56814 Created=180sec ago NeedsCT=1
TCP OUT 192.168.10.10:49350 -> 143.42.164.97:33793 XLATE_SRC 192.168.10.10:49350 Created=334sec ago NeedsCT=1
TCP OUT 192.168.10.10:56013 -> 92.255.85.36:54963 XLATE_SRC 192.168.10.10:56013 Created=1383sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:47106 XLATE_DST 192.168.10.10:47106 Created=1403sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:56370 XLATE_DST 192.168.10.10:56370 Created=724sec ago NeedsCT=1
UDP OUT 192.168.10.10:33991 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:33991 Created=1079sec ago NeedsCT=1
UDP OUT 192.168.10.10:50916 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:50916 Created=918sec ago NeedsCT=1
UDP OUT 192.168.10.10:52718 -> 192.168.0.2:53 XLATE_SRC 192.168.10.10:52718 Created=757sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:49392 XLATE_DST 192.168.10.10:49392 Created=837sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:40112 XLATE_DST 192.168.10.10:40112 Created=60sec ago NeedsCT=1
UDP OUT 192.168.10.10:48709 -> 194.0.5.123:123 XLATE_SRC 192.168.10.10:48709 Created=75sec ago NeedsCT=1
UDP IN 3.39.176.65:123 -> 192.168.10.10:51785 XLATE_DST 192.168.10.10:51785 Created=881sec ago NeedsCT=1
ICMP OUT 192.168.10.10:56814 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:56814 Created=180sec ago NeedsCT=1
UDP OUT 192.168.10.10:43899 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:43899 Created=464sec ago NeedsCT=1
TCP IN 45.79.104.47:35758 -> 192.168.10.10:60000 XLATE_DST 192.168.10.10:60000 Created=1140sec ago NeedsCT=1
ICMP OUT 192.168.10.10:54615 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:54615 Created=1260sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:43899 XLATE_DST 192.168.10.10:43899 Created=464sec ago NeedsCT=1
TCP OUT 192.168.10.10:35733 -> 87.247.158.150:52887 XLATE_SRC 192.168.10.10:35733 Created=1325sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:59222 XLATE_DST 192.168.10.10:59222 Created=780sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:54615 XLATE_DST 192.168.10.10:54615 Created=1260sec ago NeedsCT=1
UDP OUT 192.168.10.10:42404 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:42404 Created=578sec ago NeedsCT=1
UDP OUT 192.168.10.10:53550 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:53550 Created=966sec ago NeedsCT=1
UDP IN 192.168.0.2:53 -> 192.168.10.10:39806 XLATE_DST 192.168.10.10:39806 Created=1186sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:35493 XLATE_DST 192.168.10.10:35493 Created=659sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:37788 XLATE_DST 192.168.10.10:37788 Created=885sec ago NeedsCT=1
TCP OUT 192.168.10.10:34775 -> 87.247.158.150:52903 XLATE_SRC 192.168.10.10:34775 Created=366sec ago NeedsCT=1
UDP OUT 192.168.10.10:49736 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:49736 Created=59sec ago NeedsCT=1
ICMP OUT 192.168.10.10:38017 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:38017 Created=1020sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:43489 XLATE_DST 192.168.10.10:43489 Created=772sec ago NeedsCT=1
UDP OUT 192.168.10.10:53438 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:53438 Created=1436sec ago NeedsCT=1
UDP OUT 192.168.10.10:53121 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:53121 Created=173sec ago NeedsCT=1
UDP OUT 192.168.10.10:48441 -> 175.193.3.234:123 XLATE_SRC 192.168.10.10:48441 Created=952sec ago NeedsCT=1
ICMP OUT 192.168.10.10:48005 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:48005 Created=1140sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:56442 XLATE_DST 192.168.10.10:56442 Created=432sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:38017 XLATE_DST 192.168.10.10:38017 Created=1020sec ago NeedsCT=1
UDP OUT 192.168.10.10:55609 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:55609 Created=1290sec ago NeedsCT=1
ICMP OUT 192.168.10.10:38017 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:38017 Created=1020sec ago NeedsCT=1
ICMP OUT 192.168.10.10:56307 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:56307 Created=840sec ago NeedsCT=1
TCP IN 172.16.1.89:8081 -> 192.168.10.10:56581 XLATE_DST 222.97.129.41:56581 Created=592sec ago NeedsCT=0
UDP OUT 192.168.10.10:59392 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:59392 Created=707sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:34461 XLATE_DST 192.168.10.10:34461 Created=1160sec ago NeedsCT=1
UDP OUT 192.168.10.10:59154 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:59154 Created=788sec ago NeedsCT=1
UDP OUT 192.168.10.10:36641 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:36641 Created=27sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:44715 XLATE_DST 192.168.10.10:44715 Created=869sec ago NeedsCT=1
UDP OUT 192.168.10.10:48883 -> 185.125.190.57:123 XLATE_SRC 192.168.10.10:48883 Created=896sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:40398 XLATE_DST 192.168.10.10:40398 Created=1380sec ago NeedsCT=1
TCP IN 194.180.49.76:51572 -> 192.168.10.10:33899 XLATE_DST 192.168.10.10:33899 Created=558sec ago NeedsCT=1
TCP IN 192.168.10.102:4240 -> 192.168.10.10:55132 XLATE_DST 192.168.10.10:55132 Created=104340sec ago NeedsCT=1
ICMP OUT 192.168.10.10:41829 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:41829 Created=1320sec ago NeedsCT=1
UDP IN 175.193.3.234:123 -> 192.168.10.10:48441 XLATE_DST 192.168.10.10:48441 Created=952sec ago NeedsCT=1
TCP OUT 192.168.10.10:58603 -> 45.33.52.85:56425 XLATE_SRC 192.168.10.10:58603 Created=929sec ago NeedsCT=1
TCP OUT 222.97.129.41:56580 -> 172.16.1.89:8081 XLATE_SRC 192.168.10.10:56580 Created=592sec ago NeedsCT=0
UDP OUT 192.168.10.10:52726 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:52726 Created=529sec ago NeedsCT=1
ICMP OUT 192.168.10.10:54615 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:54615 Created=1260sec ago NeedsCT=1
UDP OUT 192.168.10.10:47106 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:47106 Created=1403sec ago NeedsCT=1
UDP IN 91.189.91.157:123 -> 192.168.10.10:42074 XLATE_DST 192.168.10.10:42074 Created=67sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:56307 XLATE_DST 192.168.10.10:56307 Created=840sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:48005 XLATE_DST 192.168.10.10:48005 Created=1140sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:40112 XLATE_DST 192.168.10.10:40112 Created=60sec ago NeedsCT=1
TCP IN 192.168.10.101:4240 -> 192.168.10.10:50680 XLATE_DST 192.168.10.10:50680 Created=104340sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:36912 XLATE_DST 192.168.10.10:36912 Created=642sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:33913 XLATE_DST 192.168.10.10:33913 Created=319sec ago NeedsCT=1
UDP OUT 192.168.10.10:36761 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:36761 Created=383sec ago NeedsCT=1
UDP OUT 192.168.10.10:40222 -> 194.0.5.123:123 XLATE_SRC 192.168.10.10:40222 Created=1108sec ago NeedsCT=1
UDP OUT 192.168.10.10:59566 -> 192.168.0.2:53 XLATE_SRC 192.168.10.10:59566 Created=757sec ago NeedsCT=1
UDP IN 106.247.248.106:123 -> 192.168.10.10:50745 XLATE_DST 192.168.10.10:50745 Created=890sec ago NeedsCT=1
TCP IN 51.254.91.152:443 -> 192.168.10.10:65191 XLATE_DST 192.168.10.10:65191 Created=673sec ago NeedsCT=1
UDP OUT 192.168.10.10:44206 -> 194.0.5.123:123 XLATE_SRC 192.168.10.10:44206 Created=590sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:56814 XLATE_DST 192.168.10.10:56814 Created=180sec ago NeedsCT=1
UDP OUT 192.168.10.10:39403 -> 185.125.190.56:123 XLATE_SRC 192.168.10.10:39403 Created=113sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:42591 XLATE_DST 192.168.10.10:42591 Created=189sec ago NeedsCT=1
UDP OUT 192.168.10.10:36726 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:36726 Created=626sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:53122 XLATE_DST 192.168.10.10:53122 Created=351sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:48005 XLATE_DST 192.168.10.10:48005 Created=1140sec ago NeedsCT=1
UDP OUT 192.168.10.10:32804 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:32804 Created=610sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:56307 XLATE_DST 192.168.10.10:56307 Created=840sec ago NeedsCT=1
TCP OUT 192.168.10.10:59954 -> 192.168.10.101:10250 XLATE_SRC 192.168.10.10:59954 Created=1166sec ago NeedsCT=1
UDP IN 194.0.5.123:123 -> 192.168.10.10:44206 XLATE_DST 192.168.10.10:44206 Created=590sec ago NeedsCT=1
UDP OUT 192.168.10.10:33205 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:33205 Created=594sec ago NeedsCT=1
TCP OUT 192.168.10.10:55132 -> 192.168.10.102:4240 XLATE_SRC 192.168.10.10:55132 Created=104340sec ago NeedsCT=1
UDP OUT 192.168.10.10:43329 -> 91.189.91.157:123 XLATE_SRC 192.168.10.10:43329 Created=1096sec ago NeedsCT=1
UDP OUT 192.168.10.10:41805 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:41805 Created=950sec ago NeedsCT=1
TCP IN 46.101.142.185:41422 -> 192.168.10.10:38002 XLATE_DST 192.168.10.10:38002 Created=1051sec ago NeedsCT=1
ICMP OUT 192.168.10.10:41829 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:41829 Created=1320sec ago NeedsCT=1
UDP IN 185.125.190.56:123 -> 192.168.10.10:57189 XLATE_DST 192.168.10.10:57189 Created=1140sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:54615 XLATE_DST 192.168.10.10:54615 Created=1260sec ago NeedsCT=1
UDP OUT 192.168.10.10:48386 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:48386 Created=1209sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:40990 XLATE_DST 192.168.10.10:40990 Created=1095sec ago NeedsCT=1
UDP OUT 192.168.10.10:39710 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:39710 Created=335sec ago NeedsCT=1
TCP OUT 192.168.10.10:60000 -> 170.64.167.145:34970 XLATE_SRC 192.168.10.10:60000 Created=1307sec ago NeedsCT=1
TCP OUT 192.168.10.10:37640 -> 169.254.169.254:80 XLATE_SRC 192.168.10.10:37640 Created=1186sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:42404 XLATE_DST 192.168.10.10:42404 Created=578sec ago NeedsCT=1
TCP IN 172.16.1.89:8081 -> 192.168.10.10:56580 XLATE_DST 222.97.129.41:56580 Created=592sec ago NeedsCT=0
ICMP OUT 192.168.10.10:48005 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:48005 Created=1140sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:34652 XLATE_DST 192.168.10.10:34652 Created=513sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:48764 XLATE_DST 192.168.10.10:48764 Created=120sec ago NeedsCT=1
ICMP OUT 192.168.10.10:56814 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:56814 Created=180sec ago NeedsCT=1
UDP OUT 192.168.10.10:45590 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:45590 Created=1112sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:46827 XLATE_DST 192.168.10.10:46827 Created=300sec ago NeedsCT=1
ICMP OUT 192.168.10.10:64473 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:64473 Created=480sec ago NeedsCT=1
UDP OUT 192.168.10.10:38881 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:38881 Created=1258sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:54615 XLATE_DST 192.168.10.10:54615 Created=1260sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:49341 XLATE_DST 192.168.10.10:49341 Created=360sec ago NeedsCT=1
TCP OUT 192.168.10.10:46617 -> 147.185.133.224:56040 XLATE_SRC 192.168.10.10:46617 Created=802sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:36726 XLATE_DST 192.168.10.10:36726 Created=626sec ago NeedsCT=1
TCP IN 34.117.59.81:80 -> 192.168.10.10:38688 XLATE_DST 192.168.10.10:38688 Created=720sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:48764 XLATE_DST 192.168.10.10:48764 Created=120sec ago NeedsCT=1
UDP OUT 192.168.10.10:44856 -> 192.168.0.2:53 XLATE_SRC 192.168.10.10:44856 Created=720sec ago NeedsCT=1
TCP OUT 222.97.129.41:56574 -> 172.16.1.89:8081 XLATE_SRC 192.168.10.10:56574 Created=592sec ago NeedsCT=0
TCP OUT 192.168.10.10:55175 -> 206.168.34.137:40404 XLATE_SRC 192.168.10.10:55175 Created=1042sec ago NeedsCT=1
TCP OUT 192.168.10.10:43446 -> 172.16.2.48:4240 XLATE_SRC 192.168.10.10:43446 Created=104359sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:48442 XLATE_DST 192.168.10.10:48442 Created=140sec ago NeedsCT=1
UDP OUT 192.168.10.10:42591 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:42591 Created=189sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:48086 XLATE_DST 192.168.10.10:48086 Created=448sec ago NeedsCT=1
TCP OUT 192.168.10.10:45444 -> 162.216.149.233:54597 XLATE_SRC 192.168.10.10:45444 Created=841sec ago NeedsCT=1
TCP OUT 192.168.10.10:47420 -> 192.168.10.102:10250 XLATE_SRC 192.168.10.10:47420 Created=1166sec ago NeedsCT=1
TCP IN 92.255.85.51:55001 -> 192.168.10.10:56365 XLATE_DST 192.168.10.10:56365 Created=607sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:40398 XLATE_DST 192.168.10.10:40398 Created=1380sec ago NeedsCT=1
ICMP OUT 192.168.10.10:40398 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:40398 Created=1380sec ago NeedsCT=1
UDP IN 192.168.0.2:53 -> 192.168.10.10:59566 XLATE_DST 192.168.10.10:59566 Created=757sec ago NeedsCT=1
UDP OUT 192.168.10.10:40990 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:40990 Created=1095sec ago NeedsCT=1
ICMP OUT 192.168.10.10:40112 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:40112 Created=60sec ago NeedsCT=1
TCP OUT 192.168.10.10:60000 -> 45.79.104.47:35758 XLATE_SRC 192.168.10.10:60000 Created=1140sec ago NeedsCT=1
UDP OUT 192.168.10.10:34652 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:34652 Created=513sec ago NeedsCT=1
UDP OUT 192.168.10.10:50686 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:50686 Created=237sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:49341 XLATE_DST 192.168.10.10:49341 Created=360sec ago NeedsCT=1
UDP OUT 192.168.10.10:58337 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:58337 Created=302sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:39710 XLATE_DST 192.168.10.10:39710 Created=335sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:38017 XLATE_DST 192.168.10.10:38017 Created=1020sec ago NeedsCT=1
TCP IN 206.168.34.137:40404 -> 192.168.10.10:55175 XLATE_DST 192.168.10.10:55175 Created=1042sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:55609 XLATE_DST 192.168.10.10:55609 Created=1290sec ago NeedsCT=1
UDP OUT 192.168.10.10:32827 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:32827 Created=221sec ago NeedsCT=1
TCP IN 45.33.52.85:56425 -> 192.168.10.10:58603 XLATE_DST 192.168.10.10:58603 Created=929sec ago NeedsCT=1
TCP OUT 192.168.10.10:48972 -> 35.203.211.140:55866 XLATE_SRC 192.168.10.10:48972 Created=699sec ago NeedsCT=1
TCP OUT 192.168.10.10:52121 -> 193.163.125.93:54817 XLATE_SRC 192.168.10.10:52121 Created=19sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:51863 XLATE_DST 192.168.10.10:51863 Created=902sec ago NeedsCT=1
UDP IN 185.125.190.58:123 -> 192.168.10.10:41146 XLATE_DST 192.168.10.10:41146 Created=1422sec ago NeedsCT=1
TCP IN 165.154.36.177:52313 -> 192.168.10.10:49665 XLATE_DST 192.168.10.10:49665 Created=991sec ago NeedsCT=1
UDP OUT 192.168.10.10:33103 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:33103 Created=367sec ago NeedsCT=1
TCP IN 169.254.169.254:80 -> 192.168.10.10:37640 XLATE_DST 192.168.10.10:37640 Created=1186sec ago NeedsCT=1
ICMP OUT 192.168.10.10:56307 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:56307 Created=840sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:52229 XLATE_DST 192.168.10.10:52229 Created=124sec ago NeedsCT=1
UDP OUT 192.168.10.10:51863 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:51863 Created=902sec ago NeedsCT=1
UDP OUT 192.168.10.10:43639 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:43639 Created=1306sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:59154 XLATE_DST 192.168.10.10:59154 Created=788sec ago NeedsCT=1
TCP OUT 192.168.10.10:50680 -> 192.168.10.101:4240 XLATE_SRC 192.168.10.10:50680 Created=104340sec ago NeedsCT=1
TCP OUT 192.168.10.10:65394 -> 92.255.85.29:54881 XLATE_SRC 192.168.10.10:65394 Created=1013sec ago NeedsCT=1
UDP OUT 192.168.10.10:48773 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:48773 Created=254sec ago NeedsCT=1
UDP IN 192.168.0.2:53 -> 192.168.10.10:40758 XLATE_DST 192.168.10.10:40758 Created=1186sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:46827 XLATE_DST 192.168.10.10:46827 Created=300sec ago NeedsCT=1
ICMP OUT 192.168.10.10:46827 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:46827 Created=300sec ago NeedsCT=1
UDP OUT 192.168.10.10:51785 -> 3.39.176.65:123 XLATE_SRC 192.168.10.10:51785 Created=881sec ago NeedsCT=1
UDP OUT 192.168.10.10:33445 -> 185.125.190.58:123 XLATE_SRC 192.168.10.10:33445 Created=385sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:49341 XLATE_DST 192.168.10.10:49341 Created=360sec ago NeedsCT=1
UDP OUT 192.168.10.10:40709 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:40709 Created=1177sec ago NeedsCT=1
TCP OUT 192.168.10.10:38688 -> 34.117.59.81:80 XLATE_SRC 192.168.10.10:38688 Created=720sec ago NeedsCT=1
UDP OUT 192.168.10.10:48858 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:48858 Created=1063sec ago NeedsCT=1
UDP OUT 192.168.10.10:37457 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:37457 Created=1128sec ago NeedsCT=1
UDP OUT 192.168.10.10:39187 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:39187 Created=1047sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:42894 XLATE_DST 192.168.10.10:42894 Created=691sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:41829 XLATE_DST 192.168.10.10:41829 Created=1320sec ago NeedsCT=1
ICMP OUT 192.168.10.10:40112 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:40112 Created=60sec ago NeedsCT=1
UDP OUT 192.168.10.10:59249 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:59249 Created=11sec ago NeedsCT=1
UDP OUT 192.168.10.10:40906 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:40906 Created=400sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:35852 XLATE_DST 192.168.10.10:35852 Created=497sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:33103 XLATE_DST 192.168.10.10:33103 Created=367sec ago NeedsCT=1
UDP OUT 192.168.10.10:41591 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:41591 Created=982sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:33205 XLATE_DST 192.168.10.10:33205 Created=594sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:59584 XLATE_DST 192.168.10.10:59584 Created=1225sec ago NeedsCT=1
TCP OUT 192.168.10.10:50792 -> 172.16.1.37:4240 XLATE_SRC 192.168.10.10:50792 Created=104363sec ago NeedsCT=1
TCP IN 192.168.10.102:10250 -> 192.168.10.10:47420 XLATE_DST 192.168.10.10:47420 Created=1166sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:41835 XLATE_DST 192.168.10.10:41835 Created=756sec ago NeedsCT=1
TCP OUT 192.168.10.10:42258 -> 185.125.188.59:443 XLATE_SRC 192.168.10.10:42258 Created=756sec ago NeedsCT=1
TCP IN 35.203.211.140:55866 -> 192.168.10.10:48972 XLATE_DST 192.168.10.10:48972 Created=699sec ago NeedsCT=1
TCP IN 147.185.133.224:56040 -> 192.168.10.10:46617 XLATE_DST 192.168.10.10:46617 Created=802sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:54446 XLATE_DST 192.168.10.10:54446 Created=998sec ago NeedsCT=1
UDP IN 185.125.190.58:123 -> 192.168.10.10:33445 XLATE_DST 192.168.10.10:33445 Created=385sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:37184 XLATE_DST 192.168.10.10:37184 Created=805sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:48386 XLATE_DST 192.168.10.10:48386 Created=1209sec ago NeedsCT=1
UDP OUT 192.168.10.10:56442 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:56442 Created=432sec ago NeedsCT=1
TCP IN 192.168.10.102:10250 -> 192.168.10.10:47426 XLATE_DST 192.168.10.10:47426 Created=1166sec ago NeedsCT=1
UDP OUT 192.168.10.10:54285 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:54285 Created=480sec ago NeedsCT=1
UDP OUT 192.168.10.10:40461 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:40461 Created=156sec ago NeedsCT=1
ICMP OUT 192.168.10.10:40398 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:40398 Created=1380sec ago NeedsCT=1
ICMP OUT 192.168.10.10:64473 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:64473 Created=480sec ago NeedsCT=1
UDP OUT 192.168.10.10:35806 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:35806 Created=1387sec ago NeedsCT=1
TCP IN 192.168.10.101:10250 -> 192.168.10.10:59954 XLATE_DST 192.168.10.10:59954 Created=1166sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:46827 XLATE_DST 192.168.10.10:46827 Created=300sec ago NeedsCT=1
TCP OUT 222.97.129.41:56575 -> 172.16.1.89:8081 XLATE_SRC 192.168.10.10:56575 Created=592sec ago NeedsCT=0
TCP IN 92.255.85.35:54941 -> 192.168.10.10:65483 XLATE_DST 192.168.10.10:65483 Created=1398sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:57378 XLATE_DST 192.168.10.10:57378 Created=1144sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:38881 XLATE_DST 192.168.10.10:38881 Created=1258sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:36879 XLATE_DST 192.168.10.10:36879 Created=43sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:56814 XLATE_DST 192.168.10.10:56814 Created=180sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:54285 XLATE_DST 192.168.10.10:54285 Created=480sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:33991 XLATE_DST 192.168.10.10:33991 Created=1079sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:48764 XLATE_DST 192.168.10.10:48764 Created=120sec ago NeedsCT=1
ICMP OUT 192.168.10.10:38017 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:38017 Created=1020sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:35806 XLATE_DST 192.168.10.10:35806 Created=1387sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:50686 XLATE_DST 192.168.10.10:50686 Created=237sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:59935 XLATE_DST 192.168.10.10:59935 Created=1242sec ago NeedsCT=1
ICMP OUT 192.168.10.10:41829 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:41829 Created=1320sec ago NeedsCT=1
UDP OUT 192.168.10.10:37866 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:37866 Created=1419sec ago NeedsCT=1
UDP OUT 192.168.10.10:56370 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:56370 Created=724sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:36761 XLATE_DST 192.168.10.10:36761 Created=383sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:53438 XLATE_DST 192.168.10.10:53438 Created=1436sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:56307 XLATE_DST 192.168.10.10:56307 Created=840sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:48005 XLATE_DST 192.168.10.10:48005 Created=1140sec ago NeedsCT=1
ICMP OUT 192.168.10.10:46827 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:46827 Created=300sec ago NeedsCT=1
TCP OUT 192.168.10.10:51605 -> 45.149.204.78:41151 XLATE_SRC 192.168.10.10:51605 Created=479sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:40709 XLATE_DST 192.168.10.10:40709 Created=1177sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:59492 XLATE_DST 192.168.10.10:59492 Created=1274sec ago NeedsCT=1
TCP IN 185.125.188.59:443 -> 192.168.10.10:42258 XLATE_DST 192.168.10.10:42258 Created=756sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:64473 XLATE_DST 192.168.10.10:64473 Created=480sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:41829 XLATE_DST 192.168.10.10:41829 Created=1320sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:49736 XLATE_DST 192.168.10.10:49736 Created=59sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:54615 XLATE_DST 192.168.10.10:54615 Created=1260sec ago NeedsCT=1
UDP OUT 192.168.10.10:36493 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:36493 Created=675sec ago NeedsCT=1
UDP OUT 192.168.10.10:50745 -> 106.247.248.106:123 XLATE_SRC 192.168.10.10:50745 Created=890sec ago NeedsCT=1
TCP OUT 192.168.10.10:38002 -> 46.101.142.185:41422 XLATE_SRC 192.168.10.10:38002 Created=1051sec ago NeedsCT=1
UDP OUT 192.168.10.10:59584 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:59584 Created=1225sec ago NeedsCT=1
UDP IN 194.0.5.123:123 -> 192.168.10.10:48709 XLATE_DST 192.168.10.10:48709 Created=75sec ago NeedsCT=1
UDP OUT 192.168.10.10:48442 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:48442 Created=140sec ago NeedsCT=1
ICMP OUT 192.168.10.10:48764 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:48764 Created=120sec ago NeedsCT=1
UDP IN 185.125.190.56:123 -> 192.168.10.10:39403 XLATE_DST 192.168.10.10:39403 Created=113sec ago NeedsCT=1
ICMP OUT 192.168.10.10:48764 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:48764 Created=120sec ago NeedsCT=1
UDP OUT 192.168.10.10:34944 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:34944 Created=1031sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:40112 XLATE_DST 192.168.10.10:40112 Created=60sec ago NeedsCT=1
UDP OUT 192.168.10.10:57378 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:57378 Created=1144sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:48764 XLATE_DST 192.168.10.10:48764 Created=120sec ago NeedsCT=1
TCP OUT 192.168.10.10:55555 -> 193.163.125.96:50779 XLATE_SRC 192.168.10.10:55555 Created=458sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:59222 XLATE_DST 192.168.10.10:59222 Created=780sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:38017 XLATE_DST 192.168.10.10:38017 Created=1020sec ago NeedsCT=1
TCP IN 162.216.149.233:54597 -> 192.168.10.10:45444 XLATE_DST 192.168.10.10:45444 Created=841sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:41805 XLATE_DST 192.168.10.10:41805 Created=950sec ago NeedsCT=1
UDP OUT 192.168.10.10:53122 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:53122 Created=351sec ago NeedsCT=1
TCP IN 87.247.158.150:52887 -> 192.168.10.10:35733 XLATE_DST 192.168.10.10:35733 Created=1325sec ago NeedsCT=1
ICMP OUT 192.168.10.10:40398 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:40398 Created=1380sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:54438 XLATE_DST 192.168.10.10:54438 Created=561sec ago NeedsCT=1
ICMP OUT 192.168.10.10:48005 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:48005 Created=1140sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:55784 XLATE_DST 192.168.10.10:55784 Created=416sec ago NeedsCT=1
TCP OUT 192.168.10.10:47426 -> 192.168.10.102:10250 XLATE_SRC 192.168.10.10:47426 Created=1166sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:36787 XLATE_DST 192.168.10.10:36787 Created=1193sec ago NeedsCT=1
ICMP OUT 192.168.10.10:41829 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:41829 Created=1320sec ago NeedsCT=1
UDP OUT 192.168.10.10:56833 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:56833 Created=92sec ago NeedsCT=1
UDP OUT 192.168.10.10:35493 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:35493 Created=659sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:34525 XLATE_DST 192.168.10.10:34525 Created=1355sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:47249 XLATE_DST 192.168.10.10:47249 Created=740sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:37457 XLATE_DST 192.168.10.10:37457 Created=1128sec ago NeedsCT=1
TCP IN 192.168.10.101:10250 -> 192.168.10.10:59962 XLATE_DST 192.168.10.10:59962 Created=1166sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:60626 XLATE_DST 192.168.10.10:60626 Created=76sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:41829 XLATE_DST 192.168.10.10:41829 Created=1320sec ago NeedsCT=1
TCP IN 87.247.158.150:52903 -> 192.168.10.10:35396 XLATE_DST 192.168.10.10:35396 Created=926sec ago NeedsCT=1
UDP OUT 192.168.10.10:36879 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:36879 Created=43sec ago NeedsCT=1
TCP OUT 192.168.10.10:59962 -> 192.168.10.101:10250 XLATE_SRC 192.168.10.10:59962 Created=1166sec ago NeedsCT=1
UDP OUT 192.168.10.10:34461 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:34461 Created=1160sec ago NeedsCT=1
TCP IN 193.163.125.93:54817 -> 192.168.10.10:52121 XLATE_DST 192.168.10.10:52121 Created=19sec ago NeedsCT=1
UDP OUT 192.168.10.10:39735 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:39735 Created=821sec ago NeedsCT=1
ICMP OUT 192.168.10.10:59222 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:59222 Created=780sec ago NeedsCT=1
ICMP OUT 192.168.10.10:40112 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:40112 Created=60sec ago NeedsCT=1
UDP OUT 192.168.10.10:49907 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:49907 Created=1339sec ago NeedsCT=1
UDP OUT 192.168.10.10:59935 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:59935 Created=1242sec ago NeedsCT=1
TCP IN 3.141.165.160:33745 -> 192.168.10.10:60003 XLATE_DST 192.168.10.10:60003 Created=1291sec ago NeedsCT=1
UDP OUT 192.168.10.10:42894 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:42894 Created=691sec ago NeedsCT=1
ICMP OUT 192.168.10.10:49341 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:49341 Created=360sec ago NeedsCT=1
TCP IN 172.16.2.48:4240 -> 192.168.10.10:43446 XLATE_DST 192.168.10.10:43446 Created=104359sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:36641 XLATE_DST 192.168.10.10:36641 Created=27sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:38017 XLATE_DST 192.168.10.10:38017 Created=1020sec ago NeedsCT=1
TCP OUT 192.168.10.10:33899 -> 194.180.49.76:51572 XLATE_SRC 192.168.10.10:33899 Created=558sec ago NeedsCT=1
TCP IN 143.42.164.204:60084 -> 192.168.10.10:49182 XLATE_DST 192.168.10.10:49182 Created=106sec ago NeedsCT=1
UDP OUT 192.168.10.10:40301 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:40301 Created=934sec ago NeedsCT=1
ICMP OUT 192.168.10.10:49341 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:49341 Created=360sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:50916 XLATE_DST 192.168.10.10:50916 Created=918sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:45590 XLATE_DST 192.168.10.10:45590 Created=1112sec ago NeedsCT=1
UDP OUT 192.168.10.10:49392 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:49392 Created=837sec ago NeedsCT=1
TCP IN 87.247.158.150:52903 -> 192.168.10.10:34775 XLATE_DST 192.168.10.10:34775 Created=366sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:48858 XLATE_DST 192.168.10.10:48858 Created=1063sec ago NeedsCT=1
ICMP OUT 192.168.10.10:38017 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:38017 Created=1020sec ago NeedsCT=1
ICMP OUT 192.168.10.10:64473 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:64473 Created=480sec ago NeedsCT=1
UDP OUT 192.168.10.10:60626 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:60626 Created=76sec ago NeedsCT=1
UDP IN 192.168.0.2:53 -> 192.168.10.10:44856 XLATE_DST 192.168.10.10:44856 Created=720sec ago NeedsCT=1
UDP OUT 192.168.10.10:54438 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:54438 Created=561sec ago NeedsCT=1
UDP OUT 192.168.10.10:34481 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:34481 Created=286sec ago NeedsCT=1
ICMP OUT 192.168.10.10:64473 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:64473 Created=480sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:59392 XLATE_DST 192.168.10.10:59392 Created=707sec ago NeedsCT=1
ICMP OUT 192.168.10.10:54615 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:54615 Created=1260sec ago NeedsCT=1
UDP OUT 192.168.10.10:36055 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:36055 Created=545sec ago NeedsCT=1
ICMP OUT 192.168.10.10:46827 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:46827 Created=300sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:44276 XLATE_DST 192.168.10.10:44276 Created=853sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:46827 XLATE_DST 192.168.10.10:46827 Created=300sec ago NeedsCT=1
UDP OUT 192.168.10.10:37184 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:37184 Created=805sec ago NeedsCT=1
ICMP OUT 192.168.10.10:56814 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:56814 Created=180sec ago NeedsCT=1
UDP OUT 192.168.10.10:35852 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:35852 Created=497sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:52726 XLATE_DST 192.168.10.10:52726 Created=529sec ago NeedsCT=1
TCP IN 89.248.163.197:45554 -> 192.168.10.10:46279 XLATE_DST 192.168.10.10:46279 Created=805sec ago NeedsCT=1
ICMP OUT 192.168.10.10:49341 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:49341 Created=360sec ago NeedsCT=1
TCP OUT 192.168.10.10:47256 -> 162.142.125.132:30875 XLATE_SRC 192.168.10.10:47256 Created=1114sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:40398 XLATE_DST 192.168.10.10:40398 Created=1380sec ago NeedsCT=1
UDP OUT 192.168.10.10:47430 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:47430 Created=1371sec ago NeedsCT=1
UDP OUT 192.168.10.10:37788 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:37788 Created=885sec ago NeedsCT=1
TCP OUT 192.168.10.10:56365 -> 92.255.85.51:55001 XLATE_SRC 192.168.10.10:56365 Created=607sec ago NeedsCT=1
UDP OUT 192.168.10.10:48086 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:48086 Created=448sec ago NeedsCT=1
ICMP OUT 192.168.10.10:59222 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:59222 Created=780sec ago NeedsCT=1
ICMP OUT 192.168.10.10:56307 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:56307 Created=840sec ago NeedsCT=1
UDP OUT 192.168.10.10:58648 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:58648 Created=1322sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:42542 XLATE_DST 192.168.10.10:42542 Created=205sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:40461 XLATE_DST 192.168.10.10:40461 Created=156sec ago NeedsCT=1
TCP OUT 222.97.129.41:56581 -> 172.16.1.89:8081 XLATE_SRC 192.168.10.10:56581 Created=592sec ago NeedsCT=0
TCP OUT 192.168.10.10:60003 -> 3.141.165.160:33745 XLATE_SRC 192.168.10.10:60003 Created=1291sec ago NeedsCT=1
TCP OUT 192.168.10.10:42256 -> 185.125.188.59:443 XLATE_SRC 192.168.10.10:42256 Created=757sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:59222 XLATE_DST 192.168.10.10:59222 Created=780sec ago NeedsCT=1
TCP IN 92.255.85.51:55001 -> 192.168.10.10:56388 XLATE_DST 192.168.10.10:56388 Created=594sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:32804 XLATE_DST 192.168.10.10:32804 Created=610sec ago NeedsCT=1
UDP OUT 192.168.10.10:45472 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:45472 Created=270sec ago NeedsCT=1
ICMP OUT 192.168.10.10:54615 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:54615 Created=1260sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:39187 XLATE_DST 192.168.10.10:39187 Created=1047sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:40301 XLATE_DST 192.168.10.10:40301 Created=934sec ago NeedsCT=1
TCP IN 89.248.163.205:47602 -> 192.168.10.10:54443 XLATE_DST 192.168.10.10:54443 Created=468sec ago NeedsCT=1
UDP OUT 192.168.10.10:36787 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:36787 Created=1193sec ago NeedsCT=1
ICMP OUT 192.168.10.10:46827 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:46827 Created=300sec ago NeedsCT=1
TCP OUT 192.168.10.10:54443 -> 89.248.163.205:47602 XLATE_SRC 192.168.10.10:54443 Created=468sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:56833 XLATE_DST 192.168.10.10:56833 Created=92sec ago NeedsCT=1
UDP OUT 192.168.10.10:44715 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:44715 Created=869sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:53121 XLATE_DST 192.168.10.10:53121 Created=173sec ago NeedsCT=1
ICMP OUT 192.168.10.10:59222 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:59222 Created=780sec ago NeedsCT=1
UDP IN 194.0.5.123:123 -> 192.168.10.10:40222 XLATE_DST 192.168.10.10:40222 Created=1108sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:49907 XLATE_DST 192.168.10.10:49907 Created=1339sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:39735 XLATE_DST 192.168.10.10:39735 Created=821sec ago NeedsCT=1
UDP OUT 192.168.10.10:40758 -> 192.168.0.2:53 XLATE_SRC 192.168.10.10:40758 Created=1186sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:59222 XLATE_DST 192.168.10.10:59222 Created=780sec ago NeedsCT=1
UDP OUT 192.168.10.10:44276 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:44276 Created=853sec ago NeedsCT=1
UDP IN 91.189.91.157:123 -> 192.168.10.10:43329 XLATE_DST 192.168.10.10:43329 Created=1096sec ago NeedsCT=1
UDP OUT 192.168.10.10:46943 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:46943 Created=108sec ago NeedsCT=1
UDP OUT 192.168.10.10:41835 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:41835 Created=756sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:43639 XLATE_DST 192.168.10.10:43639 Created=1306sec ago NeedsCT=1
UDP OUT 192.168.10.10:56297 -> 192.168.0.2:53 XLATE_SRC 192.168.10.10:56297 Created=720sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:40906 XLATE_DST 192.168.10.10:40906 Created=400sec ago NeedsCT=1
ICMP OUT 192.168.10.10:56814 -> 172.16.2.48:0 XLATE_SRC 192.168.10.10:56814 Created=180sec ago NeedsCT=1
UDP OUT 192.168.10.10:47249 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:47249 Created=740sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:60215 XLATE_DST 192.168.10.10:60215 Created=1014sec ago NeedsCT=1
TCP IN 172.16.1.89:8081 -> 192.168.10.10:56574 XLATE_DST 222.97.129.41:56574 Created=592sec ago NeedsCT=0
UDP IN 192.168.0.2:53 -> 192.168.10.10:52718 XLATE_DST 192.168.10.10:52718 Created=757sec ago NeedsCT=1
UDP OUT 192.168.10.10:42542 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:42542 Created=205sec ago NeedsCT=1
TCP IN 172.16.1.37:4240 -> 192.168.10.10:50792 XLATE_DST 192.168.10.10:50792 Created=104363sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:48005 XLATE_DST 192.168.10.10:48005 Created=1140sec ago NeedsCT=1
UDP OUT 192.168.10.10:33913 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:33913 Created=319sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:49341 XLATE_DST 192.168.10.10:49341 Created=360sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:64473 XLATE_DST 192.168.10.10:64473 Created=480sec ago NeedsCT=1
UDP OUT 192.168.10.10:39806 -> 192.168.0.2:53 XLATE_SRC 192.168.10.10:39806 Created=1186sec ago NeedsCT=1
UDP OUT 192.168.10.10:43489 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:43489 Created=772sec ago NeedsCT=1
ICMP IN 192.168.10.102:0 -> 192.168.10.10:56307 XLATE_DST 192.168.10.10:56307 Created=840sec ago NeedsCT=1
TCP OUT 192.168.10.10:65483 -> 92.255.85.35:54941 XLATE_SRC 192.168.10.10:65483 Created=1398sec ago NeedsCT=1
UDP OUT 192.168.10.10:36912 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:36912 Created=642sec ago NeedsCT=1
ICMP IN 172.16.1.37:0 -> 192.168.10.10:64473 XLATE_DST 192.168.10.10:64473 Created=480sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:36055 XLATE_DST 192.168.10.10:36055 Created=545sec ago NeedsCT=1
ICMP OUT 192.168.10.10:59222 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:59222 Created=780sec ago NeedsCT=1
UDP IN 185.125.190.57:123 -> 192.168.10.10:48883 XLATE_DST 192.168.10.10:48883 Created=896sec ago NeedsCT=1
ICMP OUT 192.168.10.10:40398 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:40398 Created=1380sec ago NeedsCT=1
TCP IN 143.42.164.97:33793 -> 192.168.10.10:49350 XLATE_DST 192.168.10.10:49350 Created=334sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:32827 XLATE_DST 192.168.10.10:32827 Created=221sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:48773 XLATE_DST 192.168.10.10:48773 Created=254sec ago NeedsCT=1
ICMP OUT 192.168.10.10:49341 -> 172.16.1.37:0 XLATE_SRC 192.168.10.10:49341 Created=360sec ago NeedsCT=1
TCP OUT 192.168.10.10:49008 -> 52.95.197.186:443 XLATE_SRC 192.168.10.10:49008 Created=1186sec ago NeedsCT=1
UDP OUT 192.168.10.10:54446 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:54446 Created=998sec ago NeedsCT=1
UDP OUT 192.168.10.10:55784 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:55784 Created=416sec ago NeedsCT=1
UDP OUT 192.168.10.10:59492 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:59492 Created=1274sec ago NeedsCT=1
ICMP OUT 192.168.10.10:56307 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:56307 Created=840sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:45472 XLATE_DST 192.168.10.10:45472 Created=270sec ago NeedsCT=1
UDP OUT 192.168.10.10:42074 -> 91.189.91.157:123 XLATE_SRC 192.168.10.10:42074 Created=67sec ago NeedsCT=1
TCP IN 185.125.188.59:443 -> 192.168.10.10:42256 XLATE_DST 192.168.10.10:42256 Created=757sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:47430 XLATE_DST 192.168.10.10:47430 Created=1371sec ago NeedsCT=1
TCP OUT 192.168.10.10:46279 -> 89.248.163.197:45554 XLATE_SRC 192.168.10.10:46279 Created=805sec ago NeedsCT=1
TCP IN 45.149.204.78:41151 -> 192.168.10.10:51605 XLATE_DST 192.168.10.10:51605 Created=479sec ago NeedsCT=1
TCP OUT 192.168.10.10:49665 -> 165.154.36.177:52313 XLATE_SRC 192.168.10.10:49665 Created=991sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:56814 XLATE_DST 192.168.10.10:56814 Created=180sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:53550 XLATE_DST 192.168.10.10:53550 Created=966sec ago NeedsCT=1
TCP OUT 192.168.10.10:49182 -> 143.42.164.204:60084 XLATE_SRC 192.168.10.10:49182 Created=106sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:40398 XLATE_DST 192.168.10.10:40398 Created=1380sec ago NeedsCT=1
TCP OUT 192.168.10.10:65191 -> 51.254.91.152:443 XLATE_SRC 192.168.10.10:65191 Created=673sec ago NeedsCT=1
UDP OUT 192.168.10.10:52229 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:52229 Created=124sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:41829 XLATE_DST 192.168.10.10:41829 Created=1320sec ago NeedsCT=1
TCP IN 92.255.85.29:54881 -> 192.168.10.10:65394 XLATE_DST 192.168.10.10:65394 Created=1013sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:34481 XLATE_DST 192.168.10.10:34481 Created=286sec ago NeedsCT=1
TCP OUT 192.168.10.10:35396 -> 87.247.158.150:52903 XLATE_SRC 192.168.10.10:35396 Created=926sec ago NeedsCT=1
ICMP OUT 192.168.10.10:48764 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:48764 Created=120sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:59249 XLATE_DST 192.168.10.10:59249 Created=11sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:37866 XLATE_DST 192.168.10.10:37866 Created=1419sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:46943 XLATE_DST 192.168.10.10:46943 Created=108sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:34944 XLATE_DST 192.168.10.10:34944 Created=1031sec ago NeedsCT=1
UDP OUT 192.168.10.10:34525 -> 169.254.169.123:123 XLATE_SRC 192.168.10.10:34525 Created=1355sec ago NeedsCT=1
TCP IN 170.64.167.145:34970 -> 192.168.10.10:60000 XLATE_DST 192.168.10.10:60000 Created=1307sec ago NeedsCT=1
ICMP OUT 192.168.10.10:48005 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:48005 Created=1140sec ago NeedsCT=1
ICMP OUT 192.168.10.10:48764 -> 192.168.10.102:0 XLATE_SRC 192.168.10.10:48764 Created=120sec ago NeedsCT=1
UDP IN 192.168.0.2:53 -> 192.168.10.10:56297 XLATE_DST 192.168.10.10:56297 Created=720sec ago NeedsCT=1
TCP IN 92.255.85.36:54963 -> 192.168.10.10:56013 XLATE_DST 192.168.10.10:56013 Created=1383sec ago NeedsCT=1
TCP OUT 192.168.10.10:56388 -> 92.255.85.51:55001 XLATE_SRC 192.168.10.10:56388 Created=594sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:58337 XLATE_DST 192.168.10.10:58337 Created=302sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:41591 XLATE_DST 192.168.10.10:41591 Created=982sec ago NeedsCT=1
TCP IN 52.95.197.186:443 -> 192.168.10.10:49008 XLATE_DST 192.168.10.10:49008 Created=1186sec ago NeedsCT=1
UDP OUT 192.168.10.10:57189 -> 185.125.190.56:123 XLATE_SRC 192.168.10.10:57189 Created=1140sec ago NeedsCT=1
UDP IN 169.254.169.123:123 -> 192.168.10.10:36493 XLATE_DST 192.168.10.10:36493 Created=675sec ago NeedsCT=1
ICMP IN 192.168.10.101:0 -> 192.168.10.10:40112 XLATE_DST 192.168.10.10:40112 Created=60sec ago NeedsCT=1
ICMP IN 172.16.2.48:0 -> 192.168.10.10:64473 XLATE_DST 192.168.10.10:64473 Created=480sec ago NeedsCT=1
TCP IN 162.142.125.132:30875 -> 192.168.10.10:47256 XLATE_DST 192.168.10.10:47256 Created=1114sec ago NeedsCT=1
ICMP OUT 192.168.10.10:40112 -> 192.168.10.101:0 XLATE_SRC 192.168.10.10:40112 Created=60sec ago NeedsCT=1



c0 bpf nat list 여기 있으니 굳이 conntrack 에 저장할 필요가 없음





# Cilium will automatically mount cgroup v2 filesystem required to attach BPF cgroup programs by default at the path /run/cilium/cgroupv2





서로 pair 로 하고 있다.









=======================================================================================

Hubble



Hubble 의 경우 기존의 운영 보안 프로그램과 충돌하지 않도록 잘 만들어놓음 # 함부로 아무 ebpf 프로그램 설치하면 문제 발생했을때 찾을수 없음





# 클라이언트 실습

# Install Hubble Client
HUBBLE_VERSION=$(curl -s https://raw.githubusercontent.com/cilium/hubble/master/stable.txt)
HUBBLE_ARCH=amd64
if [ "$(uname -m)" = "aarch64" ]; then HUBBLE_ARCH=arm64; fi
curl -L --fail --remote-name-all https://github.com/cilium/hubble/releases/download/$HUBBLE_VERSION/hubble-linux-${HUBBLE_ARCH}.tar.gz{,.sha256sum}
sha256sum --check hubble-linux-${HUBBLE_ARCH}.tar.gz.sha256sum
sudo tar xzvfC hubble-linux-${HUBBLE_ARCH}.tar.gz /usr/local/bin
rm hubble-linux-${HUBBLE_ARCH}.tar.gz{,.sha256sum}









(⎈|CiliumLab:N/A) root@k8s-s:~# hubble observe
Oct 26 15:05:11.992: 192.168.10.10 (host) -> 172.16.2.48 (health) to-network FORWARDED (ICMPv4 EchoRequest)
Oct 26 15:05:11.992: 192.168.10.10 (host) -> 192.168.10.102 (remote-node) to-network FORWARDED (ICMPv4 EchoRequest)
Oct 26 15:05:11.992: 192.168.10.10:43446 (host) -> 172.16.2.48:4240 (health) to-network FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:11.992: 192.168.10.10:43446 (kube-apiserver) <- 172.16.2.48:4240 (health) to-network FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:11.993: 192.168.10.10:50680 (host) -> 192.168.10.101:4240 (remote-node) to-network FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:11.994: 192.168.10.10:55132 (host) -> 192.168.10.102:4240 (remote-node) to-network FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:11.995: 192.168.10.10:50792 (host) -> 172.16.1.37:4240 (health) to-network FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:14.649: 192.168.10.101:39874 (host) -> 192.168.10.10:6443 (kube-apiserver) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:14.839: 192.168.10.101:60475 (host) -> 169.254.169.123:123 (world) to-network FORWARDED (UDP)
Oct 26 15:05:16.676: 127.0.0.1:60890 (world) <> 192.168.10.101 (host) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:16.676: 127.0.0.1:60900 (world) <> 192.168.10.101 (host) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:17.406: 192.168.10.10:44572 (host) -> 192.168.10.102:10250 (remote-node) to-network FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:21.393: 192.168.10.101:43206 (host) -> 192.168.10.10:6443 (kube-apiserver) to-network FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:22.271: 192.168.10.101:60600 (host) -> 78.128.113.38:41751 (world) to-network FORWARDED (TCP Flags: ACK, RST)
Oct 26 15:05:23.781: 192.168.10.101:39874 (host) -> 192.168.10.10:6443 (kube-apiserver) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:24.521: 192.168.10.10:48017 (host) -> 169.254.169.123:123 (world) to-network FORWARDED (UDP)
Oct 26 15:05:24.679: 192.168.10.101:50522 (host) -> 192.168.10.102:4240 (remote-node) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:24.679: 192.168.10.101:56408 (host) -> 172.16.1.37:4240 (health) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:24.691: 192.168.10.101:37346 (remote-node) <- 172.16.0.174:4240 (health) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:24.691: 192.168.10.101:37346 (host) -> 172.16.0.174:4240 (health) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:24.691: 192.168.10.101:53904 (host) -> 192.168.10.10:4240 (kube-apiserver) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:24.691: 192.168.10.101:37346 (remote-node) -> 172.16.0.174:4240 (health) to-endpoint FORWARDED (TCP Flags: ACK)
Oct 26 15:05:26.658: 192.168.10.102:57450 (remote-node) <- 172.16.2.48:4240 (health) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:26.658: 192.168.10.101:44420 (host) <- 172.16.2.48:4240 (health) to-stack FORWARDED (TCP Flags: ACK)
Oct 26 15:05:26.658: 192.168.10.101:44420 (host) -> 172.16.2.48:4240 (health) to-endpoint FORWARDED (TCP Flags: ACK)
Oct 26 15:05:26.658: 192.168.10.102:57450 (remote-node) -> 172.16.2.48:4240 (health) to-endpoint FORWARDED (TCP Flags: ACK)
Oct 26 15:05:26.739: 192.168.10.102:46064 (remote-node) <- 172.16.0.174:4240 (health) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:26.740: 192.168.10.102:46064 (remote-node) -> 172.16.0.174:4240 (health) to-endpoint FORWARDED (TCP Flags: ACK)
Oct 26 15:05:26.995: 192.168.10.10:38538 (host) <- 172.16.0.174:4240 (health) to-stack FORWARDED (TCP Flags: ACK)
Oct 26 15:05:26.995: 192.168.10.10:38538 (host) -> 172.16.0.174:4240 (health) to-endpoint FORWARDED (TCP Flags: ACK)
Oct 26 15:05:27.170: 192.168.10.10:43446 (kube-apiserver) <- 172.16.2.48:4240 (health) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:27.170: 192.168.10.10:50680 (host) -> 192.168.10.101:4240 (remote-node) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:27.170: 192.168.10.10:43446 (host) -> 172.16.2.48:4240 (health) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:27.170: 192.168.10.10:43446 (kube-apiserver) -> 172.16.2.48:4240 (health) to-endpoint FORWARDED (TCP Flags: ACK)
Oct 26 15:05:27.239: 192.168.10.10:55132 (host) -> 192.168.10.102:4240 (remote-node) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:27.239: 192.168.10.10:50792 (host) -> 172.16.1.37:4240 (health) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:27.406: 192.168.10.10:44572 (host) -> 192.168.10.102:10250 (remote-node) to-network FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:29.935: 192.168.10.101:39874 (host) -> 192.168.10.10:6443 (kube-apiserver) to-network FORWARDED (TCP Flags: ACK)
Oct 26 15:05:30.105: 127.0.0.1:48456 (world) <> 192.168.10.10 (host) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:30.998: 192.168.10.101:46342 (host) -> 169.254.169.123:123 (world) to-network FORWARDED (UDP)
Oct 26 15:05:31.041: kube-system/hubble-ui-59bb4cb67b-7fgjf:38664 (ID:5256) -> kube-system/hubble-relay-88f7f89d4-ndbpb:4245 (ID:9590) to-endpoint FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:31.041: kube-system/hubble-relay-88f7f89d4-ndbpb:56060 (ID:9590) -> 192.168.10.10:4244 (kube-apiserver) to-network FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:31.041: kube-system/hubble-relay-88f7f89d4-ndbpb:56786 (ID:9590) -> 192.168.10.101:4244 (remote-node) to-network FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:31.042: kube-system/hubble-relay-88f7f89d4-ndbpb:40524 (ID:9590) <- 192.168.10.102:4244 (host) to-endpoint FORWARDED (TCP Flags: ACK, PSH)
Oct 26 15:05:31.050: 192.168.10.10:56575 (kube-apiserver) -> kube-system/hubble-ui-59bb4cb67b-7fgjf:8081 (ID:5256) to-endpoint FORWARDED (TCP Flags: ACK)
Oct 26 15:05:31.050: 192.168.10.10:56727 (kube-apiserver) -> kube-system/hubble-ui-59bb4cb67b-7fgjf:8081 (ID:5256) to-endpoint FORWARDED (TCP Flags: ACK)
Oct 26 15:05:31.069: 127.0.0.1:50910 (world) <> kube-system/coredns-55cb58b774-m4wjw (ID:14383) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.069: 127.0.0.1:8080 (world) <> kube-system/coredns-55cb58b774-m4wjw (ID:14383) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.069: 127.0.0.1:50910 (world) <> kube-system/coredns-55cb58b774-m4wjw (ID:14383) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.069: 127.0.0.1:50910 (world) <> kube-system/coredns-55cb58b774-m4wjw (ID:14383) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.069: 127.0.0.1:8080 (world) <> kube-system/coredns-55cb58b774-m4wjw (ID:14383) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.069: 127.0.0.1:8080 (world) <> kube-system/coredns-55cb58b774-m4wjw (ID:14383) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.069: 127.0.0.1:8080 (world) <> kube-system/coredns-55cb58b774-m4wjw (ID:14383) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.069: 127.0.0.1:8080 (world) <> kube-system/coredns-55cb58b774-m4wjw (ID:14383) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.069: 127.0.0.1:50910 (world) <> kube-system/coredns-55cb58b774-m4wjw (ID:14383) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.069: 127.0.0.1:50910 (world) <> kube-system/coredns-55cb58b774-m4wjw (ID:14383) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.712: 127.0.0.1:57524 (world) <> kube-system/hubble-relay-88f7f89d4-ndbpb (ID:9590) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.712: 127.0.0.1:57524 (world) <> kube-system/hubble-relay-88f7f89d4-ndbpb (ID:9590) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.712: 127.0.0.1:57524 (world) <> kube-system/hubble-relay-88f7f89d4-ndbpb (ID:9590) pre-xlate-rev TRACED (TCP)
Oct 26 15:05:31.712: 127.0.0.1:57524 (world) <> kube-system/hubble-relay-88f7f89d4-ndbpb (ID:9590) pre-xlate-rev TRACED (TCP)
(⎈|CiliumLab:N/A) root@k8s-s:~#



반응형
Comments
